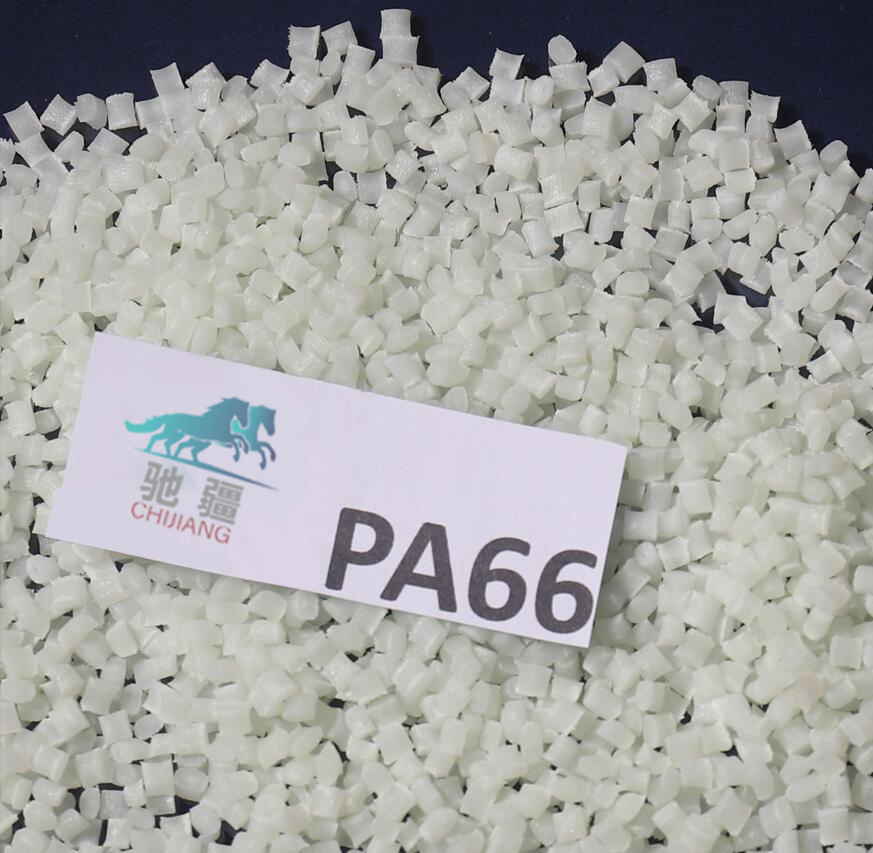

High Quality Nylon 66 Raw Material PA 66 PA66 GF25 Polyamide 66

Short Description:


Product Detail

SEND MESSAGE

Application

1.Product Description

Polyamide(PA) are also commonly known as Nylon, the most common types of polyamides are PA6 and PA66, which are characterized by balanced mechanical, electrical and tribological properties. Nylons are often material of choice when it comes to applications that require high strength, rigidity and flame retardant ability.
Properties:
High strength,
High rigidity,
Good heat resistance,
Low water absorption,
Low shrinkage,
Self-lubricating properties, and
Good processing properties


2.The technical parameters

PA66
Technical Date sheet
Properties Test Method Units Value
Physical property
Specific gravity ISO1183 g/cm3 1.14
Water
absorption(23oC,24hr)
ISO62 % 0.2
Mechanical properties
Tensile strength at break ISO527 MPa 75
Elongation at break ISO527 % 40.3
Flexural strength ISO178 MPa 97
Flexural modulus ISO178 MPa 2600
Charpy impact strength(notched)+23oC ISO179(1eA) KJ/M2 6
Thermal properties
Deflection temperature at 1.8MPa ISO75-2 oC 187
Melting temperature ISO11357-1/-3 oC 260
Flammability
Flammability UL94 V-2



3. The Application Of PA66
Inlet manifold of automobile engine, radiator tank parts, motor cover, tire cover, tension wheel, cooling fan, jetting machine accessories, electronics, connection terminal, disconnector, bearing cage, power tools cover, high performance gear, coil skeleton, textile accessories and so on.
4.Company Profile
Hebei Chijiang Import and Export Co., LTD, starting from 2010,  is constantly engaged in the production of plastic raw materials products,which is located in Handan City, Hebei Province, China, covering 500 acres, having more than 350 employees. The main products are carbon black ,masterbatch, modified(pvc, PP, pa6, pa66, pbt, abs),Filler masterbatch,fireretardant,antioxidant,flexibilizer,plasticizer, and other plastic raw material(ldpe hdpe lldpe pvc pva pbt eva abs eps gpps hips pc pet etc.  With years of hard work and development, we have achieved a certain scale with technical service team for users with high quality and professional service.

5.The package & delivery
1.Packing:
Water-Proof Paper Plastic Bag
20mt/20'FCL
2.Storage:
The resin should be stored in a drafty, dry warehouse and away from fire and direct sunlight. It should not be piled up in the open air.
3.Transportation:
During transportation, the product should not be exposed to strong sunlight or rain and should not be transported together with sand, soil, scrap metal, coal or glass. Transportation together with toxic, corrosive and flammable substance is strictly prohibited.

6.Our advantage
1.We are able to provide customized service based on your requirements.
2. Competitive prices - directly from factory to customer.
3.Advanced equipments for testing and manufacturing.
4.Professional and good after-sale service
5. Free sample for testing

Quality:
And we are the manufactory, so you don’t need to doubt the quality.
Payment method: for example T/T, D/A, L/C, Westerm Union,other
1)We will ship the goods within 5days after get your payments.If you want to cancel or change order, please tell me within 24hours after you finish the payment…So we both can make the best of the bad bargain.
2)We will ship the goods that you order from us by HKEMS, DHL, UPS, TNT and EUB.We will decided to choose which courier depend on different countries.To find the best way to delivery the goods for you.
3)As usual you can get the goods with in 4-7days.If the goods were lost or not received for other reasons, please contact us immediately.
