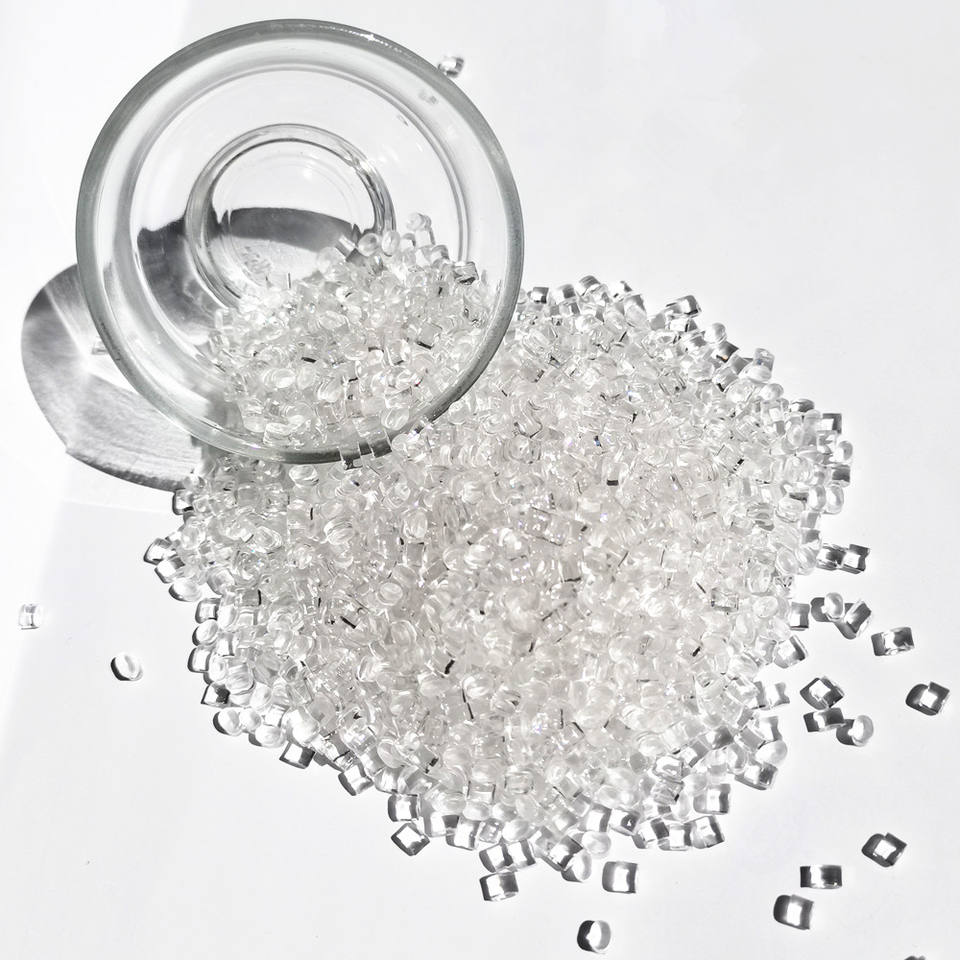

PETG Plastic Raw Material

Short Description:


Product Detail

SEND MESSAGE

Application

1.Product Description:

Excellent thermoforming performance

PETG plate is easy to produce products with complex shape and large stretch ratio. Moreover, unlike PC plates and impact-modified acrylic, the plates do not need to be pre-dried before thermoforming. Compared with PC board or acrylic, the molding cycle is short, the temperature is low, and the yield is higher.

toughness

Extruded sheets of PETG sheets are typically 15 to 20 times tougher than universal acrylic and 5 to 10 times tougher than impact-modified acrylic. The PETG sheet has enough bearing capacity during processing, transportation and use to help prevent rupture.

Weather resistance

PETG plates provide excellent weather resistance. It keeps the product tough and prevents Browning. It contains ultraviolet absorber, can be squeezed into a protective layer, protecting the board from the harmful effects of ultraviolet.

Simple processing

PETG plate can be sawed, die-cut, drilling, punching, shearing, riveting, milling and cold bending, not broken. Slight scratches on the surface can be removed with a heat gun. Solvent bonding is also a routine operation. It is easier to process than general acrylic, anti-impact modified acrylic or PC board, and can be flocking, electroplating, electrostatic processing.

Excellent chemical resistance

PETG plates can withstand a wide range of chemicals as well as commonly used cleaners.

Environmental protection

PCTG board substrates are all environmentally friendly materials and meet the requirements of food contact management.

economy

It is cheaper than PC board and more durable than acrylic.

PETG is partially applied

PETG has glass-like transparency and density close to glass, good gloss, chemical corrosion resistance, impact resistance, and easy to process, injection molding, injection blow molding and extrusion blow molding. It can also produce unique shapes, looks and special effects, such as bright colors, matte, marble texture, metallic luster, etc. But also can use other polyester, elastic plastic or ABS for overlapping injection molding.

Different profile

The products are hard, transparent, shiny, not white under pressure, easy to shape and post-processing processing, in line with environmental requirements, and in line with the United States FDA on food contact standards, widely used in building decoration and materials.


2.Product Parameters
PETG K2012
Technical Parameters
Process Blowing Molding
Color Transparent
FR HB V-2
Features High toughness BPA free, Chemical Resistant, Good processability
Application Construction applications, Deco film, Non-specific food applications, Sheet, Cosmetics
Physical Properties Test Conditions Value Unit Test Method
Density   1.27 g/cm3 ASTM D792
Shrinkage   0.2~0.5 g/10min ASTM D955
Hardness Test Conditions Value Unit Test Method
Rockwell Hardness R (Scale)   108   ASTM D785
Mechanical Properties  Test Conditions Value Unit Test Method
Tensile Strength Yield   44.6 MPa ASTM D638
Tensile Strength Break   28 MPa ASTM D638

3.Company Profile
Hebei Chijiang Import and Export Co., LTDstarting from 2010,  is constantly engaged in the production of plastic raw materials products,which is located in Handan City, Hebei Province, China, covering 500 acres, having more than 350 employees. The main products are carbon black ,masterbatch, modified(pvc, PP, pa6, pa66, pbt, abs),Filler masterbatch,fireretardant,antioxidant,flexibilizer,plasticizer, and other plastic raw material(ldpe hdpe lldpe pvc pva pbt eva abs eps gpps hips pc pet etc.  With years of hard work and development, we have achieved a certain scale with technical service team for users with high quality and professional service.

4.Packaging & Shipping

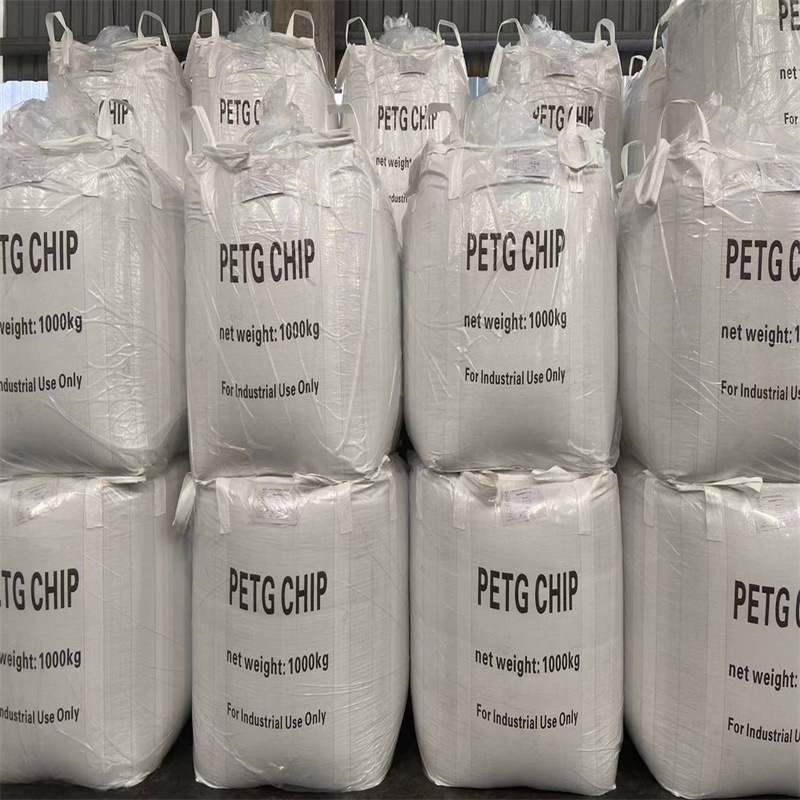

1.Packing:
Water-Proof Paper Plastic Bag
20mt/20'FCL
2.Storage:
The resin should be stored in a drafty, dry warehouse and away from fire and direct sunlight. It should not be piled up in the open air.
3.Transportation:

During transportation, the product should not be exposed to strong sunlight or rain and should not be transported together with sand, soil, scrap metal, coal or glass. Transportation together with toxic, corrosive and flammable substance is strictly prohibited.

Quality:
And we are the manufactory, so you don’t need to doubt the quality.
Payment method: for example T/T, D/A, L/C, Westerm Union,other
1)We will ship the goods within 5days after get your payments.If you want to cancel or change order, please tell me within 24hours after you finish the payment…So we both can make the best of the bad bargain.
2)We will ship the goods that you order from us by HKEMS, DHL, UPS, TNT and EUB.We will decided to choose which courier depend on different countries.To find the best way to delivery the goods for you.
3)As usual you can get the goods with in 4-7days.If the goods were lost or not received for other reasons, please contact us immediately.
